Place of Origin | Jiangsu,China |
Brand Name | LIANZHONG |
Certification | ISO9001 |
Model Number | 1000series, 2000series, 3000series, 5000series, 6000series, 7000series |
Document | Product Brochure PDF |

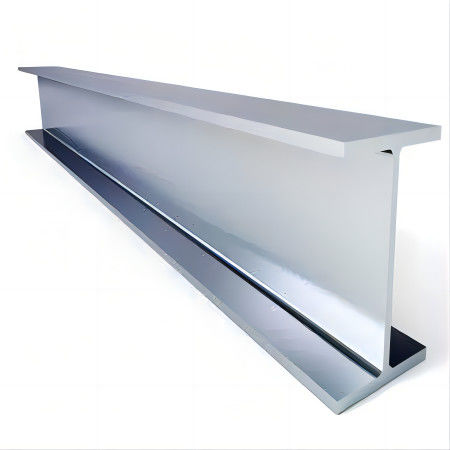

ASTM 6075 Silver Aluminium H Beam 6mm Thickness Used For Bridges
There are many product specifications of H beam, and the classification methods are as follows.
(1) According to the flange width of the product, it can be divided into wide flange, middle flange and narrow flange H-beams. Flange width B of wide and middle flange H-beams is greater than or equal to web height H. The flange width B of the narrow flange H-beam is equal to about half of the height H of the web.
(2) According to the use of the product, it is divided into H-type steel beam, H-type steel column, H-type steel pile, H-type steel beam with very thick flange. Sometimes parallel leg channels and parallel flange T-bars are also included in the scope of H beam. Generally, narrow flange H-beam steel is used as beam material and wide flange H-beam is used as column material. Therefore, it is also known as beam H-beam and column H-beam.
(3) According to the production mode, it can be divided into welded H-beam and rolled H-beam.
(4) According to the size specification, it is divided into large, medium and small H-beam steel. Usually the web height H above 700mm products called large, 300 ~ 700mm called medium, less than 300mm called trumpet. By the end of 1990, the largest H-beam in the world had a web height of 1200mm and flange width of 530mm.
Product name | H-beam |
Shape | H shaped steel |
Application | Building Construction |
Length | 6 mm- 12 mm |
QMM | 5 tons |
Thickness | 5 mm- 34 mm |
Surface | Painted Galvanized Weld |
Packing | Standard Export Seaworthy Package |
Delivery Time | 10 - 30 Days |
Payment | T/T,L/C,Western Union |
Product Advantages | Fast delivery time |
Double checking before loading | |
Large stock of multiple products | |
Provide sample for free |
Grade
|
Hardness
|
Tensile Strength
|
Yield Strength
|
Elongation(%)
|
|
(MPa)
|
(MPa)
|
0.25-1.25mm
|
1.26-3.0mm
|
||
1100
|
O
|
89.6
|
34.5
|
30
|
6
|
H12
|
110.3
|
103.4
|
4
|
12
|
|
H14
|
124.1
|
117.2
|
3
|
10
|
|
2024
|
O
|
186.2
|
75.8
|
18
|
20
|
T3
|
482.6
|
344.7
|
16
|
18
|
|
T4
|
468.8
|
324.1
|
20
|
19
|
|
3003
|
O
|
110.3
|
41.4
|
30
|
33
|
H12
|
131
|
124.1
|
9
|
11
|
|
H14
|
151.7
|
144.8
|
3
|
7
|
|
5052
|
O
|
193.1
|
89.6
|
20
|
21
|
H32
|
227.5
|
193.1
|
7
|
10
|
|
H34
|
262
|
213.7
|
6
|
8
|
|
5083
|
O
|
275.8
|
144.8
|
21
|
25
|
H32
|
282.7
|
151.7
|
20
|
21
|
|
H34
|
330.9
|
255.1
|
11
|
14
|
|
6061
|
O
|
124.1
|
55.2
|
25
|
26
|
T4
|
241.3
|
144.8
|
22
|
24
|
|
T6
|
310.3
|
275.8
|
12
|
17
|
|
7075
|
O
|
227.5
|
103.4
|
16
|
18
|
T6
|
572.3
|
503.3
|
11
|
12
|
