Place of Origin | Jiangsu,China |
Brand Name | LIANZHONG |
Certification | ISO9001 |
Model Number | 1000series, 2000series, 3000series, 5000series, 6000series, 7000series |
Document | Product Brochure PDF |

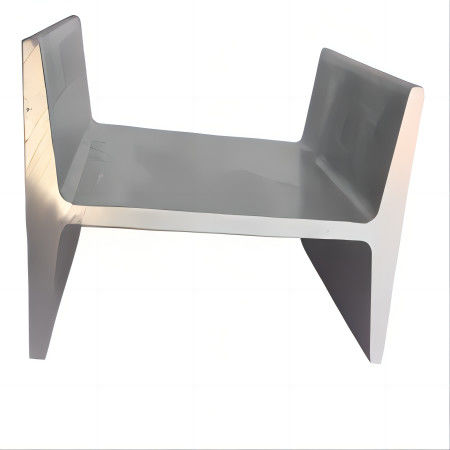

ASTM 6063 Powder Coating Silver Aluminium I Beam 20mm Used For Aluminium Profile
Aluminium I beam sections have web and flanges of different thicknesses.
An aluminium I beam is a length of aluminium formed in the shape of a capital.
The other way of looking at it is a capital H on its side. Being made from aluminium makes I beams lighter and more resistant to corrosion than traditional mild steel I beams or universal beams.
(H×B)
|
Section size
|
W(kg/m)
|
|
(H×B)
|
Section size
|
W(kg/m)
|
||
T1
|
T2
|
T1
|
T2
|
|||||
100×50
|
5
|
7
|
9.54
|
346×174
|
6
|
9
|
41.8
|
|
100×100
|
6
|
8
|
17.2
|
350×175
|
7
|
11
|
50
|
|
125×125
|
6.5
|
9
|
23.8
|
350×350
|
12
|
19
|
137
|
|
148×100
|
6
|
9
|
21.4
|
390x300
|
10
|
16
|
107
|
|
150×75
|
5
|
7
|
14.3
|
396×199
|
7
|
11
|
56.7
|
|
150×150
|
7
|
10
|
31.9
|
400×200
|
8
|
13
|
66
|
|
175×90
|
5
|
8
|
18.2
|
400×400
|
13
|
21
|
172
|
|
175×175
|
7.5
|
11
|
40.3
|
440×300
|
11
|
18
|
124
|
|
194×150
|
6
|
9
|
31.2
|
446×199
|
8
|
12
|
66.7
|
|
198×99
|
4.5
|
7
|
18.5
|
450×200
|
9
|
14
|
76.5
|
|
200×100
|
5.5
|
8
|
21.7
|
482×300
|
11
|
15
|
115
|
|
200×200
|
8
|
12
|
50.5
|
488×300
|
11
|
18
|
129
|
|
244×175
|
7
|
11
|
44.1
|
496×199
|
9
|
14
|
79.5
|
|
248×124
|
5
|
8
|
25.8
|
500×200
|
10
|
16
|
89.6
|
|
250×125
|
6
|
9
|
29.7
|
582×300
|
12
|
17
|
137
|
|
250×250
|
9
|
14
|
72.4
|
588×300
|
12
|
20
|
151
|
|
294×200
|
8
|
12
|
57.3
|
596×199
|
10
|
15
|
95.1
|
|
298×149
|
5.5
|
8
|
32.6
|
600×200
|
11
|
17
|
106
|
|
300×150
|
6.5
|
9
|
37.3
|
700×300
|
13
|
24
|
185
|
|
300×300
|
10
|
15
|
94.5
|
800×300
|
14
|
26
|
210
|
|
340×250
|
9
|
14
|
79.7
|
900×300
|
16
|
28
|
243
|
