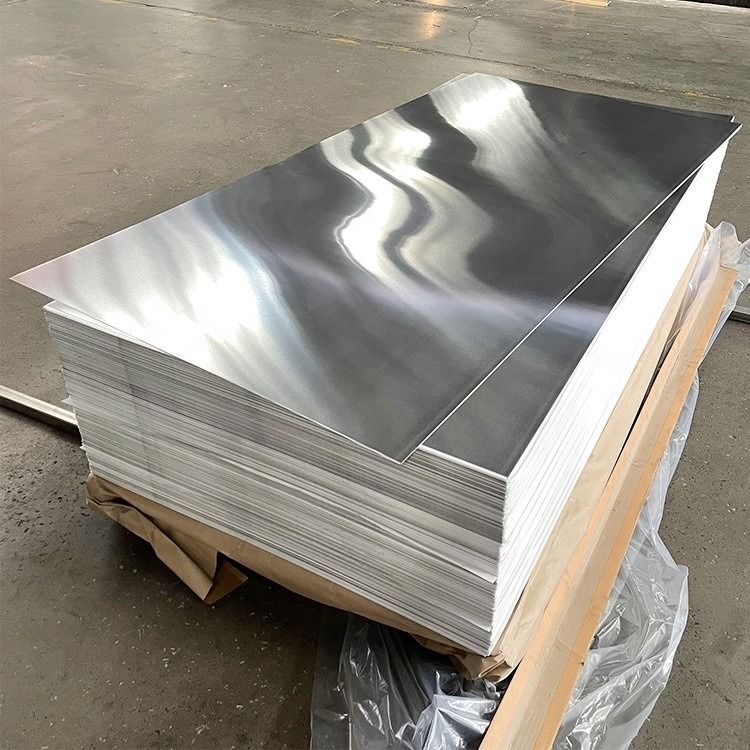

Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace
  • Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace
  • Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace
  • Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace
Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace

Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace

Place of Origin Jiangsu,China
Brand Name Chinalco
Certification ISO9001
Model Number 1000series, 2000series, 3000series, 5000series, 6000series, 7000series
Document Product Brochure PDF
Product Details
Product Name:
Aluminum Sheet Plate
Standard:
GB/T3880;ASTM B209
Model Number:
1060 1050 3024 3003 5052 5083 6061 6063
Coating Material:
PE/PVDF/SMP Or As Required
Thickness:
0.6-20mm Or As Required
Inspection:
Accept Third Party Inspection.
Loading Port:
Shanghai Port, Tianjin Port, Qingdao Port Or As Required
Usage:
Body Tank Of Cold Chain Truck,high Speed Rail,aluminum Pull Ring
Highlight:

Cold Drawn Aluminium Sheet

,

2024 Aluminium Sheet

,

2000 Series Aluminium Sheet

Payment & Shipping Terms
Minimum Order Quantity
1 Ton
Price
Negotiable
Packaging Details
Exporting package/wooden box package etc
Delivery Time
3-15 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
2000 Ton/Tons per Month
Product Description

High Quality Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace



Product Description



2024 aluminum coils and sheets are considered the "aircraft" alloy because of its strength. It is readily formed in the annealed condition and may be subsequently heat treated. 2024 aluminum sheets possess good machinability and can be machined to a high finish. Since corrosion resistance is relatively low, aluminum alloy 2024 is commonly used with an anodized finish or in clad form (“Alclad”) with a thin surface layer of high purity aluminum. As an enhanced sheet for fuselage applications, Alclad offers improved fracture toughness and fatigue crack growth while maintaining the strength characteristics of the alloy. 2024 aluminum is often used for applications in the aerospace industry.


Product Name Aluminium alloy plate sheet
Standard National standard: 7A09 GB/T3190--2008, Japanese standard: A7075 JIS H4000-1999 JIS H4080-1999
Tensile strength σb (MPa) : 524, Yield strength σs (MPa) ≥455, Hardness: 150HB, Density:2.81g/cm³, Poisson's ratio: 0.33
Production technology Precision cutting → Surface grinding → cutting → molding
Typical uses Aerospace industry, blow molding (bottle) mold, ultrasonic plastic welding mold, golf ball head, shoe mold, paper plastic mold, foam molding mold, dewaxing mold, template, fixture, mechanical equipment, mold processing, for the production of high-end aluminum alloy bicycle frame.
Specification Thickness: 0.6mm-20mm Width: 1250/1500/1520/2000mm Length: 2500/3000/4000mm or as customer's requirement
Export Packing Standard Seaworthy Package
Loading of Port Shanghai port,Tianjin Port or as required

Aluminum Grade



1000 Series
Industrial Pure Aluminum(1050,1060 ,1070, 1100)
2000 Series
Aluminum-copper alloys(2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17)
3000 Series
Aluminum-manganese alloys(3A21, 3003, 3103, 3004, 3005, 3105)
4000 Series
Al-Si alloys(4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A)
5000 Series
Al-Mg alloys(5052, 5083, 5754, 5005, 5086,5182)
6000 Series
Aluminum Magnesium Silicon Alloys(6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02)
7000 Series
Aluminum, Zinc, Magnesium and Copper Alloys(7075, 7A04, 7A09, 7A52, 7A05)



Product Detail



Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace 0



Chemical Composition



Alloy
Si
Fe
Cu
Mn
Mg
Cr
Zn
Ti
Al
1050
0.25
0.4
0.05
0.05
0.05
—
0.05
0.03
99.5
1070
0.2
0.25
0.04
0.03
0.03
—
0.04
0.03
99.7
1100
0.95 Si + Fe
0.05-0.20
0.05
—
—
0.1
—
99
2024
0.5
0.5
3.8-4.9
0.30-0.9
1.2-1.8
0.1
0.25
0.15
Rem.
3003
0.6
0.7
0.05-0.20
1.0-1.5
—
—
0.1
—
Rem.
3004
0.3
0.7
0.25
1.0-1.5
0.8-1.3
—
0.25
—
Rem.
3005
0.6
0.7
0.3
1.0-1.5
0.20-0.6
0.1
0.25
0.1
Rem.
5005
0.3
0.7
0.2
0.2
0.50-1.1
0.1
0.25
—
Rem.
5052
0.25
0.4
0.1
0.1
2.2-2.8
0.15-0.35
0.1
—
Rem.
5252
0.08
0.1
0.1
0.1
2.2-2.8
—
0.05
—
Rem.
6061
0.40-0.8
0.7
0.15-0.40
0.15
0.8-1.2
0.04-0.35
0.25
0.15
Rem.
7075
0.4
0.5
1.2-2.0
0.3
2.1-2.9
0.18-0.28
5.1-6.1
0.2
Rem.



Test



Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace 1



Recommend Products



Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace 2



Application



2xxx 2A12
2024		 Aviation aluminum materials are mainly used in aircraft structures (such as skins),aerospace, weapons, engines, pistons, automobile bodies, ship hulls and stressed components



Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace 3



Packing and Shippment



Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace 4

Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace 5

Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace 6

Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace 7



Certification



Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace 8



FAQ



Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.



Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.



Q:What are the shipping ports?
A:You can choose other ports according to your needs.
