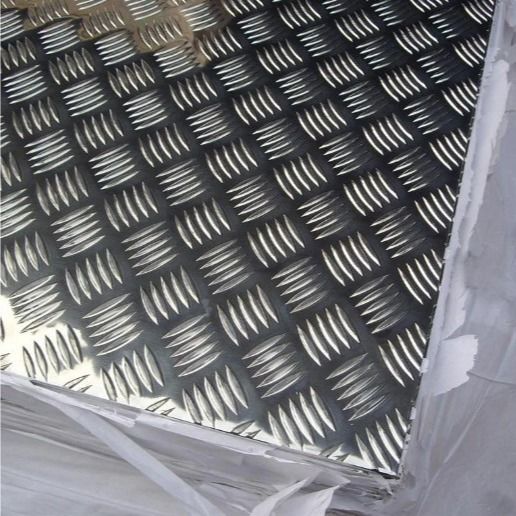

GB/T3880 Aluminium Sheet Checker Plate 5052 5083 Marine Grade Embossed Five Bars

GB/T3880 Aluminium Sheet Checker Plate 5052 5083 Marine Grade Embossed Five Bars

GB/T3880 Aluminium Sheet Checker Plate 5052 5083 Marine Grade Embossed Five Bars

Place of Origin	Jiangsu,China
Brand Name	Chinalco
Certification	ISO9001
Model Number	1000series, 2000series, 3000series, 5000series, 6000series, 7000series
Document	Product Brochure PDF

Product Details

Product Name:

Aluminum Sheet

Key Word:

Alloy Checker Sheet

Standard:

ASTM-B209. EN573-1, GB/T3880.1-2006

Model Number:

1060 1050 3024 3003 5052 5083

Thickness:

0.6-20mm Or As Required

Pattern:

Diamond,Round Bean,Hyacinth Bean,5 Bar

Surface:

Flat Every Pieces Covered With PE Film

Application:

Floors, Interior Walls, Stairs, Kitchens, Bathrooms, Garages, Refrigerators, And Other Decorations.

Highlight:

5083 Aluminium Sheet Checker Plate

,

Marine Grade Aluminium Sheet Checker Plate

,

5052 aluminium sheet checker plate

Payment & Shipping Terms

Minimum Order Quantity

1 Ton

Price

Negotiable

Packaging Details

Exporting package/wooden box package etc

Delivery Time

3-15 days

Payment Terms

L/C, T/T, Western Union

Supply Ability

20000 Ton/Tons per Month

Product Description

GB/T3880 Aluminium Sheet Checker Plate 5052 5083 Marine Grade Embossed Five Bars

Product Description

Compared with ordinary aluminum alloy plate and aluminum checker plates, marine grade aluminum checker plate has stricter processes and better performance standards. Among them, Haomei one bar aluminum checker plate has high market share in North America, especially the aluminum tread plate with a thickness of 1.6 mm or less. They have the following advantages:

1. Excellent corrosion resistance. Since ships are used in harsh seawater media and marine environments all year round, corrosion resistance is one of the main signs of marine grade aluminum tread plates.

2. It has high specific strength and specific modulus. The structural strength and size of a ship are closely related to the yield strength and elastic modulus of the material. It is usually difficult for high-strength aluminum alloys to have excellent corrosion resistance and weldability at the same time. 5xxx aluminum checker plate is often used.

Grade	Aluminium Checkered Sheet
	1050,1060,1100,2024,2204,3003, 5052, 5083,5754......
Thickness	0.6-20mmor as required
Width	1000-2000mm (1250 and 1500mm usually used)
Length	1000-12000mm or as your request
Surface	Mill Finish/Coated/Polished/Anodize/Satin-Finished
Application	Floors, interior walls, stairs, kitchens, bathrooms, garages, refrigerators, and other decorations.Vehicle interior/exterior panels, tools and equipment, as well as conventional industrial and manufacturing materials.
Pattern	Diamond,Round Bean,Hyacinth Bean,5 Bar......

Pattern

GB/T3880 Aluminium Sheet Checker Plate 5052 5083 Marine Grade Embossed Five Bars 0

Product Detail

GB/T3880 Aluminium Sheet Checker Plate 5052 5083 Marine Grade Embossed Five Bars 1

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	impurities	Al	note
1050	<0.25	<0.40	<0.05	<0.05	<0.05		<0.05	<0.03	Other, each 0.03	>99.5	V<0.05
1060	<0.25	<0.35	<0.05	<0.03	<0.03		<0.05	<0.03	Other, each 0.03	>99.6	V<0.05
1070	<0.20	<0.25	<0.04	0.03	0.03		0.04	0.03	Other, each 0.03	>99.7	V<0.05
1100	Si +Fe <0.95		0.05-0.20	<0.05			<0.10		Other, each 0.03	>99.00	V<0.05
3003=АМц	<0.6	<0.7	0.05-0.20	1.0-1.5			<0.10		Other,each 0.05, total 0.15
3004	<0.30	<0.7	<0.25	1.0-1.5	0.8-1.3		<0.25		Other,each 0.05, total 0.15
3105	<0.6	<0.7	<0.30	0.30-0.8	0.20-0.8	<0.20	<0.4	<0.10	Other,each 0.05, total 0.15
5052=АМг2.5	<0.25	<0.40	<0.10	<0.10	2.2-2.8	0.15-0.35	<0.10		Other,each 0.05, total 0.15
5083=АМг4.5	<0.40	<0.40	<0.10	0.40-1.0	4.0-4.9	0.05-0.25	<0.25	<0.15	Other,each 0.05, total 0.15

Recommend Products

GB/T3880 Aluminium Sheet Checker Plate 5052 5083 Marine Grade Embossed Five Bars 2

Application

GB/T3880 Aluminium Sheet Checker Plate 5052 5083 Marine Grade Embossed Five Bars 3

Packing and Shippment

GB/T3880 Aluminium Sheet Checker Plate 5052 5083 Marine Grade Embossed Five Bars 4

GB/T3880 Aluminium Sheet Checker Plate 5052 5083 Marine Grade Embossed Five Bars 5

GB/T3880 Aluminium Sheet Checker Plate 5052 5083 Marine Grade Embossed Five Bars 6

GB/T3880 Aluminium Sheet Checker Plate 5052 5083 Marine Grade Embossed Five Bars 7

Certification

GB/T3880 Aluminium Sheet Checker Plate 5052 5083 Marine Grade Embossed Five Bars 8

FAQ

Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q:What are the shipping ports?
A:You can choose other ports according to your needs.
