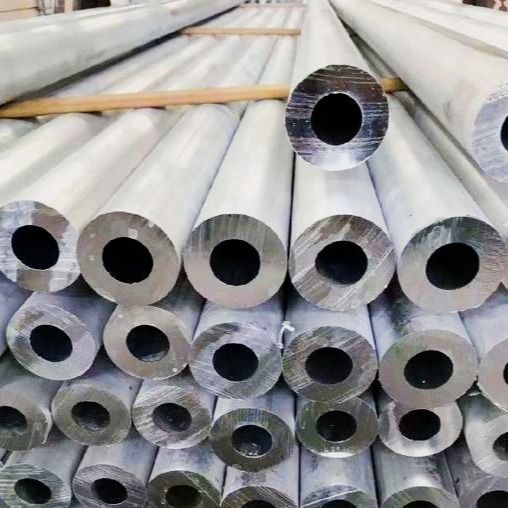

Extrude Seamless Aluminium Pipe 6061 6063 Round Mill Finished 10mm Thick Laser Cutting
Product Description
Aluminum alloy has low density, high strength, close to or higher than high-quality steel, good plasticity, and can be processed into various profiles. It has excellent electrical conductivity, thermal conductivity and corrosion resistance. It is widely used in industry, and its usage is only second to that of steel.
| Item |
Aluminium alloy pipe |
| Material |
Aluminium alloy |
| Type of tube |
Welded or seamless |
| Size |
Outer Diameter:5-650mm or as required |
| |
Wall Thickness: 1-53mm or as required |
| |
Length:1000-11000mm or as required |
|
Grade
|
1000 series: 1050,1060,1070,1080,1100,1435, etc
2000 series: 2011,2014,2017,2024, etc
3000 series: 3002,3003,3104,3204,3030, etc
5000 series: 5005,5025,5040,5056,5083, etc
6000 series: 6101,6003,6061,6063,6020,6201,6262,6082, etc
7000 series: 7003,7005,7050,7075, etc
|
|
Surface treatment
|
Mill finish,anodized,Powder coating,Wooden grain,Sand blast, electroplate |
| Package |
Aluminum tube and pipes are packed in bundle with plastic bags, then in wooden case. |
| MOQ |
500KG |
| Leading time |
7-10 days after advance payment,depends on the specific quantity |
Product Detail
Chemical Compositon
|
Alloy
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
Ti
|
Zr
|
|
Impurity
|
Al
|
2014
|
0.5-1.2
|
0.7
|
3.9-5.0
|
0.4-1.2
|
0.2-0.8
|
0.1
|
0.25
|
|
0.15
|
-
|
0.15
|
Rest
|
2017
|
0.2-0.8
|
0.7
|
3.5-4.5
|
0.4-1.0
|
0.4-0.8
|
|
0.1
|
0.25
|
0.15
|
-
|
0.15
|
Rest
|
2024
|
0.5
|
0.5
|
3.8-4.9
|
|
0.3-0.9
|
1.2-1.8
|
0.1
|
0.25
|
0.15
|
-
|
0.15
|
Rest
|
5052
|
0.25
|
|
0.4
|
0.1
|
0.1
|
2.2-2.8
|
0.15-0.35
|
0.1
|
-
|
-
|
0.15
|
Rest
|
|
5056
|
0.3
|
0.4
|
0.1
|
0.05-0.20
|
4.5-5.6
|
0.05-0.20
|
0.1
|
-
|
-
|
|
0.15
|
Rest
|
5083
|
0.4
|
0.4
|
0.1
|
0.40-1.0
|
4.0-4.9
|
0.05-0.25
|
0.25
|
|
0.15
|
-
|
0.15
|
Rest
|
5754
|
0.4
|
0.4
|
0.1
|
0.5
|
2.6-3.6
|
|
0.3
|
0.2
|
0.15
|
-
|
0.15
|
Rest
|
6061
|
0.4-0.8
|
0.70
|
0.15-0.40
|
|
0.15
|
0.8-1.2
|
0.04-0.35
|
0.25
|
0.15
|
-
|
0.15
|
Rest
|
6063
|
0.2-0.6
|
|
0.35
|
0.1
|
0.1
|
0.45-0.9
|
0.1
|
0.1
|
0.1
|
-
|
0.15
|
Rest
|
|
6082
|
0.7-1.3
|
0.5
|
0.1
|
0.4-1.0
|
0.6-1.2
|
0.25
|
0.2
|
0.1
|
-
|
Physical Properties
| Physical Properties |
Tensile Strength |
Yield Strength |
Elongation(%) |
| Grade |
Hardness |
(MPa) |
(MPa) |
0.25-1.25mm |
1.26-3.0mm |
| 1100 |
O |
89.6 |
34.5 |
30 |
6 |
| H12 |
110.3 |
103.4 |
4 |
12 |
| H14 |
124.1 |
117.2 |
3 |
10 |
| 2024 |
O |
186.2 |
75.8 |
18 |
20 |
| T3 |
482.6 |
344.7 |
16 |
18 |
| T4 |
468.8 |
324.1 |
20 |
19 |
| 3003 |
O |
110.3 |
41.4 |
30 |
33 |
| H12 |
131 |
124.1 |
9 |
11 |
| H14 |
151.7 |
144.8 |
3 |
7 |
| 5052 |
O |
193.1 |
89.6 |
20 |
21 |
| H32 |
227.5 |
193.1 |
7 |
10 |
| H34 |
262 |
213.7 |
6 |
8 |
| 5083 |
O |
275.8 |
144.8 |
21 |
25 |
| H32 |
282.7 |
151.7 |
20 |
21 |
| H34 |
330.9 |
255.1 |
11 |
14 |
| 6061 |
O |
124.1 |
55.2 |
25 |
26 |
| T4 |
241.3 |
144.8 |
22 |
24 |
| T6 |
310.3 |
275.8 |
12 |
17 |
| 7075 |
O |
227.5 |
103.4 |
16 |
18 |
| T6 |
572.3 |
503.3 |
11 |
12 |
Recommend Products
Application
Packing & Shipping
Certificate
FAQ
Q:Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
