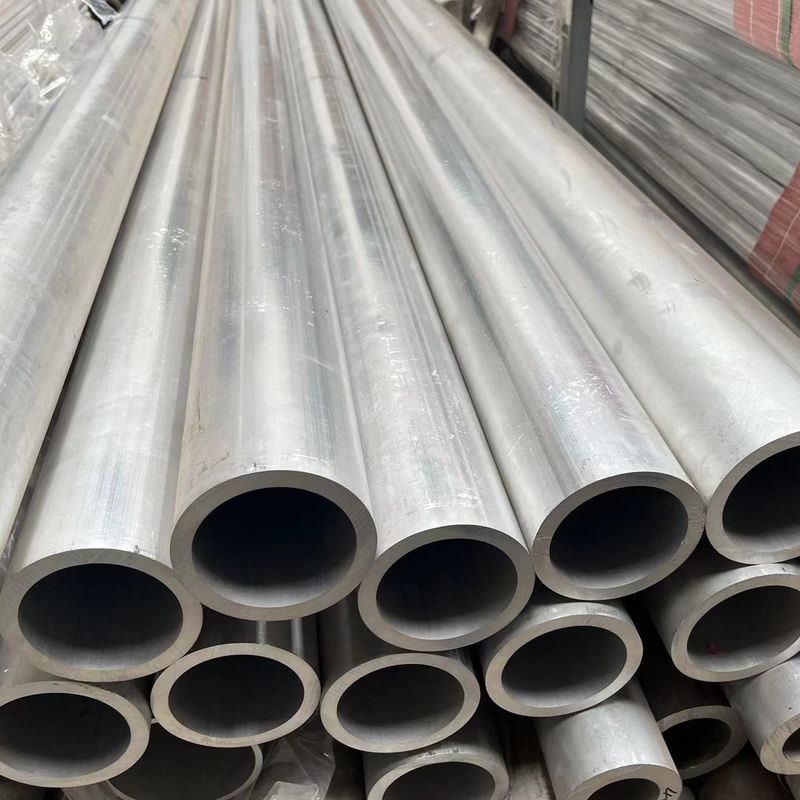

Hollow Anodized Extruded Aluminium Pipe Round 1060 0.5 - 12mm Alloy Profile
Product Description
Aluminum round tubes come in a wide range of different finishes, including anodized. The interior is generally smooth with no seams. It is available in two variants: a more affordable extruded structural aluminum round tube or a more expensive drawn seamless form for those higher precision applications.
Name | Aluminium pipe |
Material Grade | 1000 series: 1050, 1060, 1070, 1080, 1100, 1435, etc
2000 series: 2011, 2014, 2017, 2024, etc
3000 series: 3002, 3003, 3104, 3204, 3030, etc
5000 series: 5005, 5025, 5040, 5056, 5083, etc
6000 series: 6101, 6003, 6061, 6063, 6020, 6201, 6262, 6082, etc
7000 series: 7003, 7005, 7050, 7075, etc |
Standard | ASTM-B209,EN573-1,GB/T3880.1-2006 |
Length | 100-12000mm or customized |
Diameter | 2mm-200mm or customized |
Thickness | 1-80mm or customized |
Tolerance | ±1% |
Processing Service | Bending, Decoiling, Welding, Punching, Cutting |
Surface Treatment | Mill,bright,polished,hair line,brush,sand Blast,checkered,embossed,etching,etc |
Packing | Standard packaging or customized |
Specification | According to customer requirements |
Origin | Jiangsu, China |
Payment Term | 30%T/T, 100%L/C at sight |
Product Detail
Chemical Compositon
| Grade | IS ON OR 209 | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Al |
| 1050 | Al99.5 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | - | 99.5 |
| 1060 | Al99.6 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | - | 0.04 | - | 99.7 |
| 1070 | Al99.7 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | 0.04 | - | 99.7 |
| 1100 | Al99.0Cu | Si+Fe:0.95 | 0.05-0.2 | 0.05 | - | - | 0.1 | - | - | 99 |
| 2014 | Cu4SiMg | 0.50-1.2 | 0.7 | 3.9-0.5 | 0.40-1.2 | 0.20-0.8 | 0.1 | - | 0.25 | 0.15 | 99 |
| 2017 | Cu4MgSi | 0.20-0.8 | 0.7 | 3.5-4.5 | 0.40-1.0 | 0.40-1.0 | - | - | 0.3 | - | 99 |
| 2024 | Cu4Mg1 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | - | 0.25 | 0.15 | 99 |
| 3003 | Al Mn1Cu | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | 99 |
| 5005 | AlMg1(B) | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | - | 0.25 | - | 99 |
| 5042 | Al Mg3.5Mn | 0.2 | 0.35 | 0.15 | 0.20-0.50 | 3.0-4.0 | 0.1 | - | 0.25 | 0.1 | 99 |
| 5052 | Al Mg2.5 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | - | 0.1 | - | 99 |
| 5083 | Al Mg4.5Mn0.7 | 0.4 | 0.4 | 0.1 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | - | -0.1 | - | 99 |
| 5754 | Al Mg3 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | - | 99 |
| 6061 | Al Mg1SiCu | 0.40-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.36 | - | 0.25 | - | 99 |
| 6063 | Al Mg0.5Si | 0.20-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | - | 0.1 | - | 99 |
| 6082 | Al Si1MgMn | 0.7-1.3 | 0.5 | 0.1 | 0.40-1.0 | 0.6-1.2 | 0.25 | - | 0.2 | - | 99 |
| 7050 | Al Zn6CuMgZr | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | - | 5.7-6.7 | 0.06 | 99 |
| 7075 | Al Zn5.5MgCu | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.0 | 0.18-0.28 | - | 5.1-6.1 | 0.2 | 99 |
Recommend Products
Application
Packing & Shipping
Certificate
FAQ
Q: Are you manufacturer?
A: Yes, we are.
Q:Can you produce according to my requirement?
A:Yes, all the design, size, printing and packaging can be done according to customer's request.
Q: Do you offer free samples?
A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on your side if you'd like to have our samples.
Q: What's your MOQ?
A: Normally 1 Tons are requested as the minimum order quantity on our side.
We can accept smaller quantities if the warehouse has the right stock size.
Q:What specification should I tell you if I wanna get the quotation?
A: 1. Alloy 2.Size 3. Temper 4. Purchase quantity
Q: What's your payment term?
A: We accept T/T,Western Union, L/C,D/A,D/P etc.
