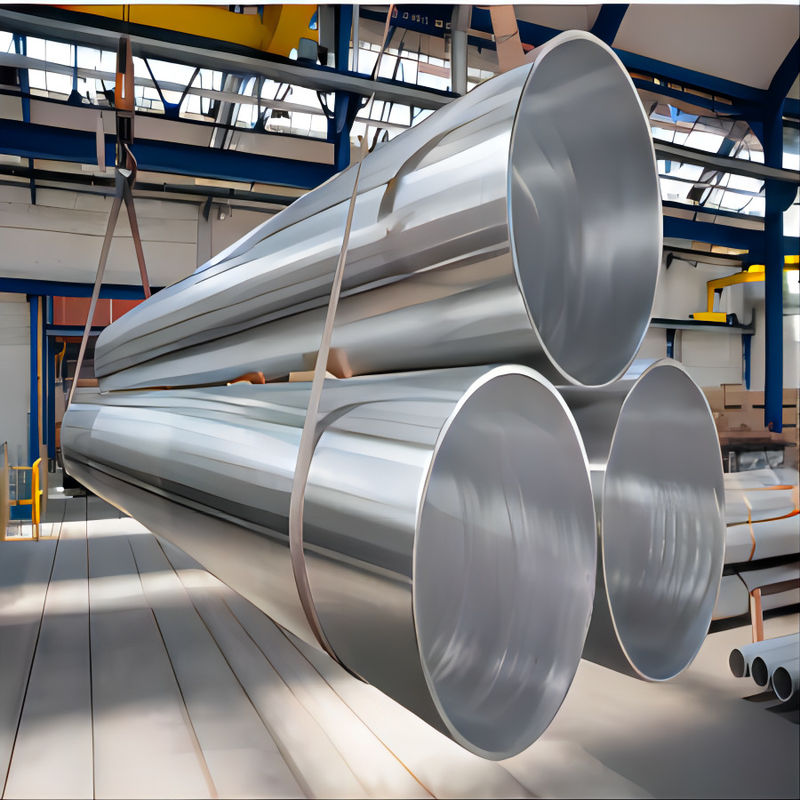

Anodized Extruded Round Aluminum Tube Pipe 24 Gauge 20 Gauge For Automobile
  • Anodized Extruded Round Aluminum Tube Pipe 24 Gauge 20 Gauge For Automobile
  • Anodized Extruded Round Aluminum Tube Pipe 24 Gauge 20 Gauge For Automobile

Anodized Extruded Round Aluminum Tube Pipe 24 Gauge 20 Gauge For Automobile

Place of Origin Jiangsu,China
Brand Name LIANZHONG
Certification ISO9001
Model Number 1000series, 2000series, 3000series, 5000series, 6000series, 7000series
Document Product Brochure PDF
Product Details
Product Name:
Aluminum Pipe
Suface:
Anodized, Mill Finished
Technique:
Bending, Decoiling, Welding, Punching, Cutting
Inspection:
We Can Also Provide The Third Inspection
Model Number:
6061 6063 7075 T6
Usage:
Building Material
Highlight:

Anodized Extruded Aluminum Tube Pipe

,

20 Gauge Extruded Aluminum Tube Pipe

,

7075 T6 Aluminum Pipe Tube

Payment & Shipping Terms
Minimum Order Quantity
2 Tons
Price
Negotiable
Packaging Details
Standard Export Seaworthy Package
Delivery Time
3-15 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
20000 Ton/Tons per Month
Product Description

ASTM Standard Anodized Extruded Round Aluminum Tube Pipe 24 Gauge 20 Gauge Thick For Automobile​



Product Introduction



Aluminum has an outstanding strength-to-weight ratio and is easy to form. Its natural corrosion resistance, which can be increased with anodizing, is one of the biggest benefits. Aluminum coil is found in a range of applications from housing siding, trim, gutters, and roofing to cans, lids, caps, bottles, and other food packaging, appliances and electronics. Because it is a lightweight and durable material, it is also seen in the automotive industry.The density of aluminum is very small, only 2.7g /cm³. Although it is soft, it can be made into a variety of aluminum alloys, such as duralumin, superduralumin, rustproof aluminum, cast aluminum and so on. These aluminum alloys are widely used in aircraft, automobiles, trains, ships and other manufacturing industries. In addition, space rockets, space shuttles,satellites also use a large number of aluminum and its aluminum alloy.



Product Name
Aluminum Tube/Pipe
Material Grade
1000 series: 1050, 1060, 1070, 1080, 1100, 1435, etc
2000 series: 2011, 2014, 2017, 2024, etc
3000 series: 3002, 3003, 3104, 3204, 3030, etc
5000 series: 5005, 5025, 5040, 5056, 5083, etc
6000 series: 6101, 6003, 6061, 6063, 6020, 6201, 6262, 6082, etc
7000 series: 7003, 7005, 7050, 7075, etc
Outer Diameter
3-300 mm or as required
Wall Thickness
0.3-60 mm or as required
Length
1-6 m, or customized
Standards
ASTM, ASME, EN, JIS, DIN, GB
Surface treatment
Mill finished, anodized, powder coating, Sand blast, etc
Surface colors
Nature, silver, bronze, champagne, black, gloden or as customized
Usage
Auto /doors/decoration/construction/curtain wall
Certificate
ISO 9001
Lead Time
Within 10 days,depends on the quantity order



Product Details



Anodized Extruded Round Aluminum Tube Pipe 24 Gauge 20 Gauge For Automobile 0





Sample Room



Anodized Extruded Round Aluminum Tube Pipe 24 Gauge 20 Gauge For Automobile 1



Chemical Composition



Garde
Chemical composition
Si
Fe
Cu
Mn
Mg
Zn
Ti
Other
Al
1050
0.25
0.4
0.05
0.05
0.05
0.05
0.03
0.03
99.5
1060
0.25
0.35
0.05
0.03
0.03
0.05
0.03
0.03
99.6
1100
Si+Fe:0.95
0.05-0.2
0.05
-
0.1
-
0.15
99
2A12
0.5
0.5
3.8-4.9
0.3-0.9
1.2-1.8
0.3
0.15
1
remains
2017
0.2-0.8
0.7
3.5-4.5
0.4-0.1
0.4-0.8
0.25
0.15
0.15
remains
2014
0.5-1.2
0.7
3.9-5
0.4-1.2
0.2-0.8
0.25
0.15
0.15
remains
3003
0.6
0.7
0.05-0.2
1.0-1.5
-
0.1
-
0.15
remains
3005
0.6
0.7
0.3
1.0-1.5
0.2-0.6
0.25
0.1
0.15
remains
3105
0.6
0.7
0.3
0.3-0.8
0.2-0.8
0.4
0.1
0.15
remains
5005
0.3
0.7
0.2
0.2
0.5-1.1
0.25
-
0.15
remains
5052
0.25
0.4
0.1
0.1
2.2-2.8
0.1
-
0.15
remains
5083
0.4
0.4
0.1
0.4-1
4.0-4.9
0.25
0.15
0.15
remains
5182
0.2
0.35
0.15
0.2-0.5
4.0-5.0
0.25
0.15
0.15
remains
5754
0.4
0.4
0.1
0.5
2.6-3.6
0.2
0.15
0.15
remains
6061
0.4-0.8
0.7
0.15-0.4
0.15
0.8-1.2
0.25
0.15
0.15
remains
6063
0.2-0.6
0.35
0.1
0.1
0.45-0.9
0.1
0.1
0.15
remains
6082
0.7-1.3
0.5
0.1
0.4-1
0.6-1.2
0.2
0.1
0.15
remains
7075
0.4
0.5
1.2-2.0
0.3
2.1-2.9
5.1-5.6
0.2
0.15
remains



Application

Anodized Extruded Round Aluminum Tube Pipe 24 Gauge 20 Gauge For Automobile 2



Certification



Anodized Extruded Round Aluminum Tube Pipe 24 Gauge 20 Gauge For Automobile 3



FAQ



Q1: Can you cut the materials into small sizes
A: Yes,we can do it to meet you need.

Q2: What's your minimum order quantity (MOQ)
A: We accept small orders,a small amount of samples is ok.

Q3: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the sample fee after you make an order.

Q4: Can you provide Certificates for aluminum materials ?
Q: Yes,we can supply MTC-Material Test Certificate.

Q5: What’s the delivery time for orders?
A:Normally it takes 3-10 working days, or mutual agreement.
