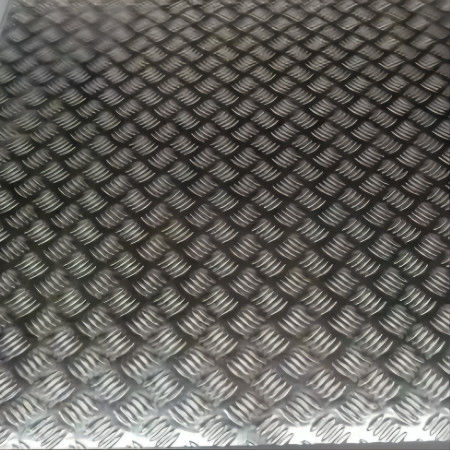

ASTM 5005 Aluminum Checkered Plate For Construction 200-2600mm Width
  • ASTM 5005 Aluminum Checkered Plate For Construction 200-2600mm Width
  • ASTM 5005 Aluminum Checkered Plate For Construction 200-2600mm Width

ASTM 5005 Aluminum Checkered Plate For Construction 200-2600mm Width

Place of Origin Jiangsu,China
Brand Name LIANZHONG
Certification ISO9001
Model Number 1000series, 2000series, 3000series, 5000series, 6000series, 7000series
Document Product Brochure PDF
Product Details
Type:
Plate
Application:
Construction , Decoration, Boat
Width:
200-2600mm
Length:
Customized
Keyword:
Aluminum Checkered Plate
Tolerance:
±1%
Highlight:

200mm aluminium tread plate sheet

,

aluminum tread plate sheets 2600mm

,

5005 Aluminum Checkered Plate

Payment & Shipping Terms
Minimum Order Quantity
3ton
Price
Negotiable
Packaging Details
Exporting package/wooden box package etc
Delivery Time
3-15 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
20000 Ton/Tons per Month
Product Description

ASTM 5005 Aluminium Checkered Plate For Construction 200-2600mm Width



Aluminum plate refers to the aluminum material with a thickness of more than 0.2mm to less than 500mm, a width of more than 200mm and a length of less than 16m, which is called aluminum plate or aluminum sheet. Aluminum plate refers to the rectangular plate rolled from aluminum ingot, which is divided into pure aluminum plate, alloy aluminum plate, thin aluminum plate, medium thickness aluminum plate and pattern aluminum plate.Aluminum plates are generally divided into the following two types: 1. According to alloy composition: High purity aluminum plate(rolled from high purity aluminum with content above 99.9) Pure aluminum plate (the composition is basically rolled from pure aluminum) Alloy aluminum plate (composed of aluminum and auxiliary alloys, usually aluminum copper, aluminum manganese, aluminum
silicon, aluminum magnesium, etc.) Composite aluminum plate or welding plate (special purpose aluminum plate material is obtained by means of multiple material compounding) Aluminum clad aluminum plate (the outer edge of aluminum plate is coated with thinaluminum plate for special purposes) 2. Divided by thickness: (unit: mm) Sheet 0.15-2.0 Conventional board 2.0-6.0 Middle plate 6.0-25.0 Thick plate 25-200.



Alloy No.
Thickness (mm)
Width (mm)
Length (mm)
Temper
A1050,A1060, A1070,A1100
1.0-10
20-2300
20-8000
H12,H22,H14,H16,H18, H24,H26,etc
3A21,A3003,A3105,A3004
1.0-10
20-2300
20-8000
H14,H18,H24,etc
A5052 ,A5005,A5083,A5754
1.0-10
20-2300
20-8000
H18,H24,H32,H34,H111,H112 ,etc
A6061,A6082,A6063
1.0-10
20-2300
20-8000
T4,T6,,etc
A8011
1.0-10
20-2300
20-8000
H12,H22,H14,H16,H18,H24,H26, etc
Packing : Export wooden pallets. The bundle wegiht not exceed 2MT. Loading:by 1x20GP, 1X20GP can load about 18MT
Standards:ASTM-B209. EN573-1, GB/T3880.1-2006
Quality of material: totally free from defects like white rust, oil patches, roll marks, edge damage, camber, dents, holes, break
lines, scratches and free from coil set
Application : Mainly used insigns, billboards, building exterior decoration, bus body, high-rise buildings and factories wall
decoration, kitchen sink, lamp, fan leaves, with pieces of electronic, chemical equipment, sheet metal processing parts, deep
drawing or spinning hollowware, welding parts, heat exchangers, bell surface and disk, plate, kitchenware, decorations, reflective
devices, ect
MOQ
5 tons
Payment term:
T/T,L/C
Delivery Time
15 days after 30% T/T payment or receiving L/C copy
Kind attention : Specifications can be customized as the customer’s requirements.



Product Details



ASTM 5005 Aluminum Checkered Plate For Construction 200-2600mm Width 0



Warehouse



ASTM 5005 Aluminum Checkered Plate For Construction 200-2600mm Width 1



Application



ASTM 5005 Aluminum Checkered Plate For Construction 200-2600mm Width 2



Packing and Shippment



ASTM 5005 Aluminum Checkered Plate For Construction 200-2600mm Width 3

ASTM 5005 Aluminum Checkered Plate For Construction 200-2600mm Width 4





Certification



ASTM 5005 Aluminum Checkered Plate For Construction 200-2600mm Width 5
