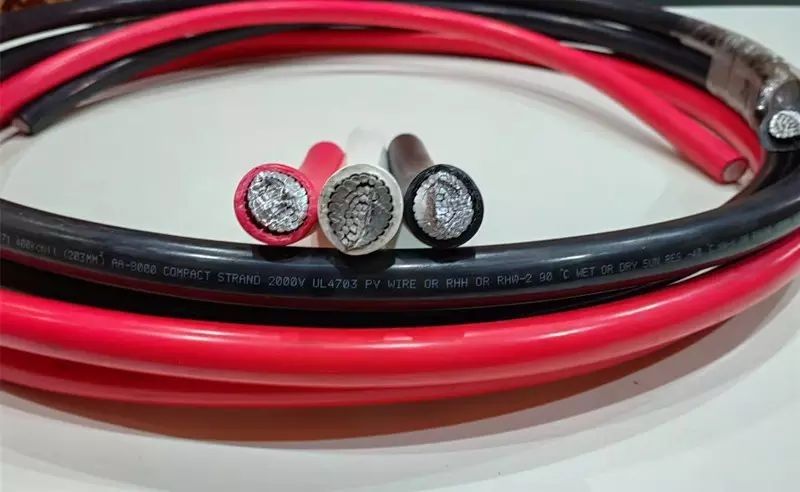

350mcm 2KV Aluminum PV Wire RPV90 RHW-2 RW90 AL-8000 Solar Cable

Place of Origin	Jiangsu,China
Brand Name	LIANZHONG
Certification	ISO9001
Model Number	1000series, 2000series, 3000series, 5000series, 6000series, 7000series
Document	Product Brochure PDF

Product Details

Standard:

1000-6000 Series

Grade:

1000

Tolerance:

±1%

Application:

Cable

Material:

Aluminum Material

MOQ:

3 Ton

Highlight:

aluminum pv wire RPV90

2kv aluminum pv wire

aluminum pv cable RW90

Payment & Shipping Terms

Minimum Order Quantity

3ton

Price

Negotiable

Packaging Details

Exporting package/wooden box package etc

Delivery Time

7-15 days

Payment Terms

L/C, T/T, Western Union

Supply Ability

20000 Ton/Tons per Month

Product Description

2KV 350mcm Aluminum PV Wire RPV90 RHW-2 RW90 AL-8000 Solar Cable

1. Application

For use in solar power applications

Rated 90℃ for exposed or concealed wiring in wet or dry locations

Rated for direct burial conduit

2. Standard

UL Subject 4703 for TYPE PV

UL 44 for TYPE RHW-2

UL 854 for TYPE USE-2

3. Construction Details

Stranded copper conductors with single layer

Bare or tinned conductors

XLPE insulation

-40C to +90C

Sunlight resistant

RoHS compliant

Direct burial

4. Dimensions

Size	Diameter of conductor	Min. Number of Strands	Insulation Thickness	Nominal O.D.	Net Weight	Maximum conductor resistance at temperature 20C
AWG or kcmil	mm	n	mm	mm	kg/km	Ω/km
250	13.21	35	3.04	19.3	583	0.232
300	14.48	35	3.04	20.6	669	0.194
350	15.65	35	3.04	21.7	754	0.166
500	18.69	35	3.04	24.8	1004	0.116
700	22.28	58	3.43	29.1	1387	0.0829

Product Details

Packing and Shippment

Certification

350mcm 2KV Aluminum PV Wire RPV90 RHW-2 RW90 AL-8000 Solar Cable 2
