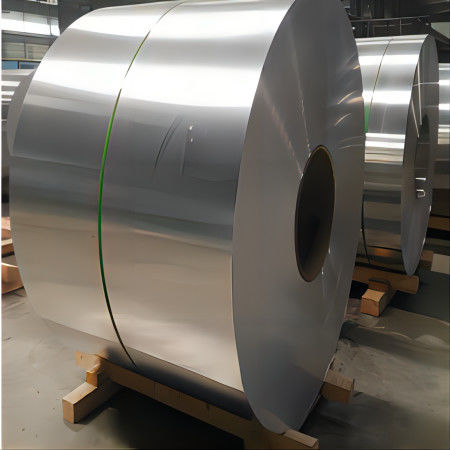

Smooth Surface 5052 Aluminium Coil 0.3mm Thickness Corrosion Resistance
  • Smooth Surface 5052 Aluminium Coil 0.3mm Thickness Corrosion Resistance
  • Smooth Surface 5052 Aluminium Coil 0.3mm Thickness Corrosion Resistance
  • Smooth Surface 5052 Aluminium Coil 0.3mm Thickness Corrosion Resistance

Smooth Surface 5052 Aluminium Coil 0.3mm Thickness Corrosion Resistance

Place of Origin Jiangsu,China
Brand Name LIANZHONG
Certification ISO9001
Model Number 1000series, 2000series, 3000series, 5000series, 6000series, 7000series
Document Product Brochure PDF
Product Details
Model Number:
5052
Grade:
5000 Series
Surface:
Smooth
Color:
Silver
Tolerance:
±1%
Application:
Decoration
Highlight:

Smooth 5052 aluminum coil

,

Aluminium Coil 0.3mm

,

5052 aluminum coil corrosion resistance

Payment & Shipping Terms
Minimum Order Quantity
3ton
Price
Negotiable
Packaging Details
Exporting package/wooden box package etc
Delivery Time
3-15 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
20000 Ton/Tons per Month
Product Description



ASTM 5052 Smooth Surface Silver Aluminium Coil 0.3mm Thickness For Decoration



5052 aluminum coil has fatigue strength: high plasticity and corrosion resistance, can not be strengthened by heat treatment, in the semi-cold hardening plasticity is good, cold hardening plasticity is low, good corrosion resistance, good weldability, bad machinability, polishing.



The strength and plasticity of 5052 aluminum coil weld is high, and the strength of weld reaches 95%~98% of the strength of matrix metal. But the air tightness of the weld is not high, it is recommended to use 5A03 alloy as solder, which can improve its air tightness and eliminate the crack tendency.



5052 aluminum coil properties



Tensile strength (σb) : 175 to 305MPa



Conditional yield strength σ0.2 (MPa)≥90



Elastic modulus (E) : 69.2 ~ 70.6Gpa



Annealing temperature: 350℃

Product Aluiminum strip, aluminum coil
Commodity Alloy Temper Gauge (mm) Width (mm) Length (mm) Standard
Al.sheets for cladding wall/curtain wall 1XXX 3XXX 5XXX HX4 0.2-12 1630 1000~ 6000 GB/T3880 GB/T3199 YS/TS429.1
Al.alloy sheet/strip 5052 H1x H2x H3x 0.2-20 1630 Strip/ sheet GB/T8544
Al.strip for composite panel 1XXX 3XXX 5XXX 8XXX H1x H2x H3x 0.2-20 1630 Strip YS/T432 YS/T434
Foil stock 1145 1235 1200 8XXX H14 H24 0.01- 0.6 1630 Strip YS/T457
Commercial Sheet/strip 1XXX 3XXX 5XXX 0 H1x H2x H3x 0.2-20 1630 Strip/ sheet GB/T3880 GB/T3199 YS/T490 YS/T431
Remark:Besides the stipulations in the above table,the specific technical agreement,if any,can be signed by the seller and buyer after mutual discussion.
